D Type Rubber Fender Durable Boat Marine Fender
Next
Super Cone Rubber Fender UHWM PE Marine Fender Pad with High Performance

Marine Boat Dock Fixed V Type Solid Port Super Arch Rubber Fender For Sale

(0 customer reviews)

Super Arch Rubber Fender Features


Features


1. More reasonable structure with high durability
2. Higher energy absorption with lower reaction force than normal V type rubber fender
3. Flexible and convenient installation, wide selection of sizes and performances
4. Front panel with UHMW-PE face pad could be installed on the top of fender to reduce surface pressure  and friction factor with ship which keeps lower shear strength while vessel berthing.

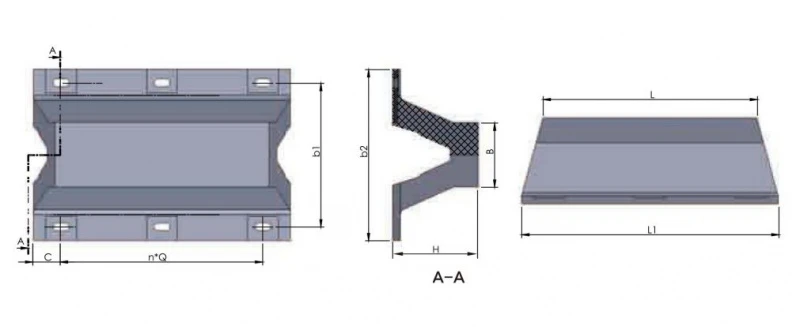

Super Arch Rubber Fender Structure




Super Arch Rubber Fender Specification

Spec. H L LI C Q n B bl b2
BA200xl000 200 1000 1100 120 860 1 145 320 400
BA 200×1500 200 1500 1600 120 680 2 145 320 400
BA 200×2000 200 2000 2100 120 620 3 145 320 400
BA 200×2500 200 2500 2600 122.5 785 3 145 320 400
BA 200×3000 200 3000 3100 120 715 4 145 320 400
BA 200×3500 200 3500 3600 120 672 5 145 320 400
BA 250×1000 250 1000 1125 130 865 1 164 410 500
BA 250×1500 250 1500 1625 132.5 680 2 164 410 500
BA 250×2000 250 2000 2125 132.5 620 3 164 410 500
BA 250×2500 250 2500 2625 127.5 790 3 164 410 500
BA 250×3000 250 3000 3125 132.5 715 4 164 410 500
BA 250×3500 250 3500 3625 130 673 5 164 410 500
BA 300×1000 300 1000 1150 140 870 1 225 490 600
BA 300×1500 300 1500 1650 140 685 2 225 490 600
BA 300×2000 300 2000 2150 137.5 625 3 225 490 600
BA 300×2500 300 2500 2650 140 790 3 225 490 600
BA 300×3000 300 3000 3150 145 715 4 225 490 600
BA 300×3500 300 3500 3650 140 674 5 225 490 600
BA 400×1000 400 1000 1200 150 900 1 300 670 800
BA 400×1500 400 1500 1700 150 700 2 300 670 800
BA 400×2000 400 2000 2200 147.5 635 3 300 670 800
BA 400×2500 400 2500 2700 150 800 3 300 670 800
BA 400×3000 400 3000 3200 150 725 4 300 670 800
BA 400×3500 400 3500 3700 150 680 5 300 670 800
BA 500×1000 500 1000 1250 160 930 1 375 840 1000
BA 500×1500 500 1500 1750 160 715 2 375 840 1000
BA 500×2000 500 2000 2250 157.5 645 3 375 840 1000
BA 500×2500 500 2500 2750 160 810 3 375 840 1000
BA 500×3000 500 3000 3250 165 730 4 375 840 1000
BA 500×3500 500 3500 3750 160 686 5 375 840 1000
BA 600×1000 600 1000 1300 170 960 1 450 1010 1200
Categories: ,
Super Arch Rubber Fender


Super arch rubber fender, also known as SA type super arch rubber fender, V type rubber fender, The top of fender is usually embedded steel mount and nut. By connecting the front panel, UHMW-PE face pad installed outside of front panel, it can lower the friction factor between fender and vessel to avoid the damage on vessel and extend the serve life of the fender. With the sample and durable design, super arch rubber fender performs stable and excellent and provide trouble-free service for berthing even under severe weather conditions.


Super arch rubber fender is made of high-quality natural rubber which is resistant to abrasion, corrosion, seawater, ageing,etc. Compared with traditional arch rubber fender, it has better stability and stronger attachment to the supporting structure. Besides that, the energy absorption has also been optimized, it’s perfectly suitable for vessels with high allowable hull pressure and the places where mounting space is limited.
